- Manufacturer:
- Model:BV-T520P
- SKU:
- Available:Pre-Order0

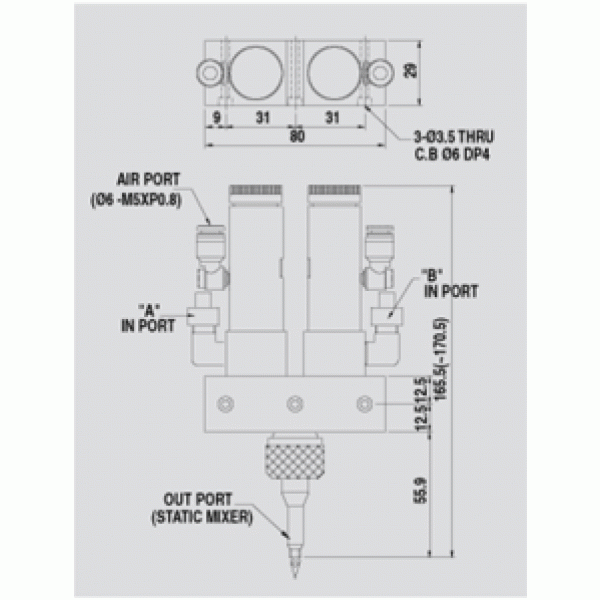

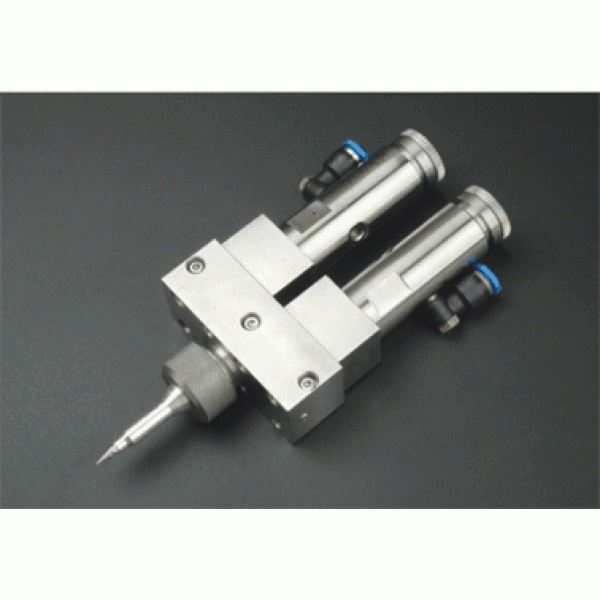

Two Piece Needle Type Precision Mixing Valve BV-T520P BanSeok
BV-T520P BanSeok is capable to continuously work on the two liquid type materials of minimum quantities, with no interference of pot life by discharging the respective resin (A) & hardener (B) simultaneously with mixing. (Precision nozzle type)
The mixing quality depends on the type of mixer installed (ordered separately).
Applied materials of BV-T520P BanSeok: Two liquid type epoxy, Silicone, Urethane, Hard lock, Two liquid type Acryl resin
Operating manual BV-T520P BanSeok
Options
|
Model |
BV-T520P |
|
Valve type |
Needle |
|
Maximum feed rate, l / min |
0.8 |
|
Viscosity range of liquids, cp s |
1 - 10,000 bn |
|
Working air pressure, kgf / cm 2 |
5 |
|
Maximum fluid pressure, kgf / cm 2 |
ten |
|
Maximum working speed, cycles / min |
400 |
|
Material Login |
PT 1/8 |
|
Valve working part material |
SUS 303 |
|
Valve mechanical material |
SUS 303 |
|
Weight, g |
1040 |
|
Applicable materials |
Epoxies, silicones, urethanes, two-component acrylic compounds |
