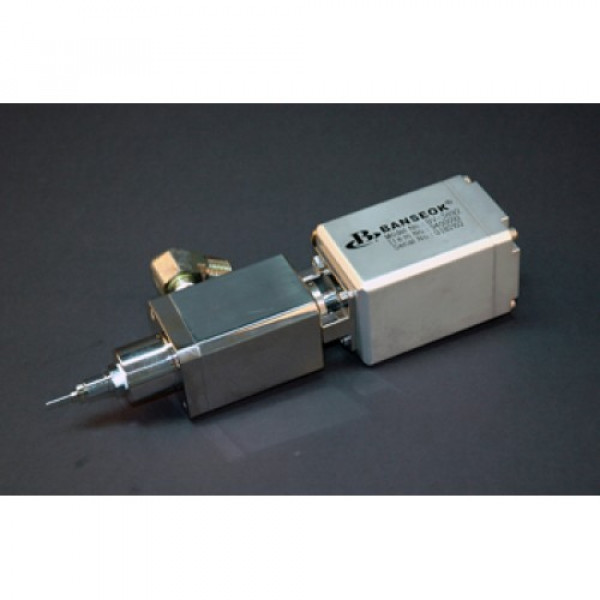

High Precision Large Capacity High Pressure Needle Valve BV-3892 BanSeok
Needle valves are used for the application of small doses of liquids from low to medium viscosity with high accuracy and repeatability.
The BV-3892 Ban Seok valve opens by pulsating airflow pressure from the valve controller. The spring assists the valve to quickly return to the closed position for immediate shutoff of the flow. The BV-3892 - Ban Seok valve has a second air inlet port that closes the valve at a controlled rate, thereby providing increased material metering accuracy. The dose volume can be adjusted by turning the knob at the top of the valve.
Applicable materials
Lubricants, silicones, oils, epoxies
Options
Parameter |
Meaning |
Valve type |
Needle |
Feed rate, l / min |
40 |
Viscosity range of liquids, cp s |
1 ~ 1,000,000 |
Working air pressure, kgf / cm 2 |
5 |
Maximum fluid pressure, kgf / cm 2 |
210 |
Maximum working speed, cycles / min |
150 |
Material Login |
PT 1/2 " |
Valve working part material |
SUS 303 |
Valve mechanical material |
AL 6061 |
Weight, g |
840 |
Applicable materials |
Lubricants, silicones, oils, epoxy resins |
